Pattern 12

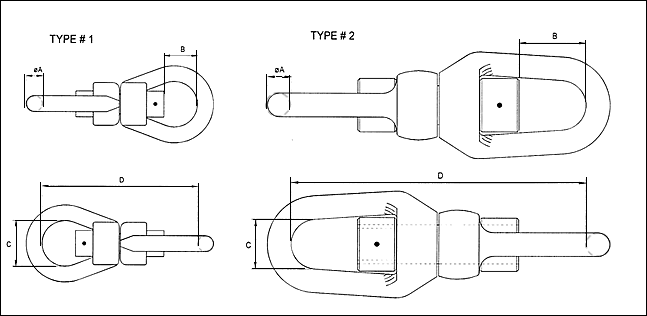

bow bow swivel pattern 12

TYPE
ØA
B
C
D
WLL
Wt. - Kg's
#1
17
50
50
215
3 t
2.2
#1
26
52
75
240
6 t
6
#1
30
60
100
300
10 t
9
#2
34
96
68
400
14 t
18
#2
39
116
82
480
20 t
26
#2
49
137
100
580
25 t
48

WLL = Working Load Limit (straight pull only)
Factor Of Safety 5 : 1  E.g. WLL 20t     Proof Loaded 40t  Break Load 100t





Options Available:

  • Finish : Hot dip galvanised to BS EN1461.
  • Other sizes available on request.
