Pattern 142

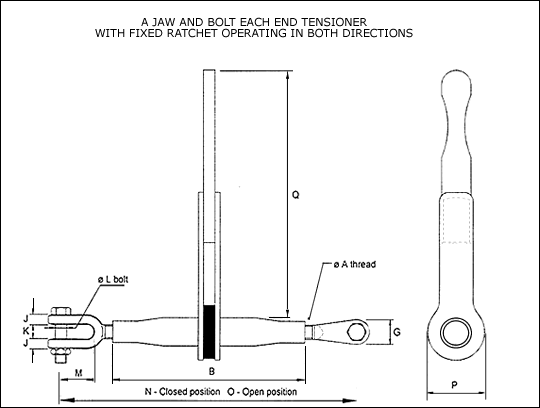

tubular rigging screw pattern 142

A B G J K L M N O P Q Wt Kg SS Ref.
M 20 229 38 12 22 16 48 380 549 65 350 4 1620142
M 22 305 38 13 26 20 60 464 703 65 350 7 1622142
M 24 356 48 14 30 22 63 526 811 65 350 8 1624142
M 33 381 64 20 38 24 72 608 840 100 450 14 1633142
M 39 407 64 20 47 33 90 668 958 114 450 20 1639142
*1.3/4 407 80 24 47 36 105 690 962 127 450 26 1645142W
*2 407 92 25 51 42 121 748 1002 127 450 32 1651142W
M 56 407 105 32 67 48 135 780 1000 154 450 37 1656142
M 64 407 105 35 70 51 130 780 980 167 500 50 1664142

All measurements metric except where marked with a *.

Options available:

  • Each screw can be Tested, Stamped and Certified.
  • Finish: self colour, plated or hot dipped galvanised.
  • Grease nipples each end for enhanced lubrication.
  • A variety of fittings to meet your requirements.



  • Higher loads, using stronger materials, so reducing weight.
  • Inspection holes each end to show when fully extended.
  • Longer sizes available upon request.
