Pattern 182

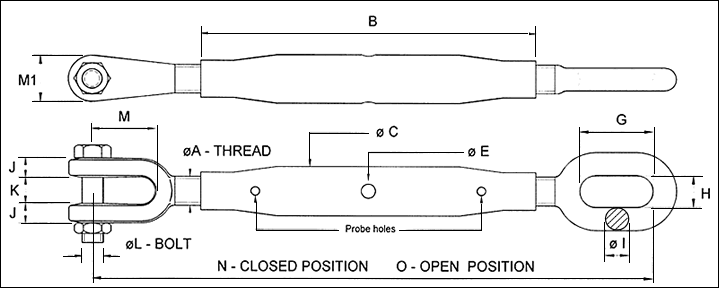

tubular rigging screw pattern 182

Ø A Thread
B
ØC
ØE
G
H
ØI
J
K
ØL
M
M1
N
O
WLL
Wt. KG’s
M 12
230
27
10
35
14
11
9
19
10
35
24
334
527
500 Kgs
1.25
M 16
230
27
10
40
18
14
10
22
12
51
32
375
556
750 Kgs
1.5
M 20
230
34
10
50
22
16
11
23
16
48
36
385
554
1.25 t
2
M 22
300
42
12
50
22
17
13
26
20
60
40
465
704
2 t
4
M 27
360
45
14
55
26
20
15
32
22
70
52
542
817
3 t
6
M 30
380
51
14
60
32
25
17
34
27
70
58
585
875
4 t
8
M 33
380
51
16
64
34
25
19
38
30
70
64
602
884
5 t
9
M 39
410
60
16
75
38
27
22
48
33
90
68
644
934
6 t
13
M 42
410
76
20
85
40
30
24
50
36
110
80
670
942
7.5 t
18
M 48
410
76
20
92
44
37
26
54
42
127
92
739
993
10 t
25
M 56
410
95
22
115
58
43
30
67
48
135
108
790
1,020
15 t
36
M 64
410
101
25
120
60
53
32
70
56
135
120
798
1,003
20 t
43
M 72
460
120
25
150
75
61
42
88
64
150
140
874
1,103
25 t
66
M 76
460
127
30
240
100
78
50
110
72
185
152
1,047
1,263
30 t
92
M 85
510
132
30
240
100
78
50
110
80
185
170
1,135
1,373
40 t
105
M 100
510
152
30
250
110
88
58
115
90
220
200
1,194
1,384
50 t
240

WLL = Working Load Limit (straight pull only)
Factor Of Safety 5 : 1 E.g. WLL 15 t Proof Loaded 30 t Break Load 75 t

NOTE
# - The jaw & oval eye fittings used in the M76 rigging screw are from the M85 tooling, threaded M76


Options available:

  • Finish ; Self colour, galvanised TCA or Spun.
  • Longer lengths ; based on the standard & meeting the performance requirements.
  • Smaller sizes to the BS 4429 are available on request.
