Pattern 302

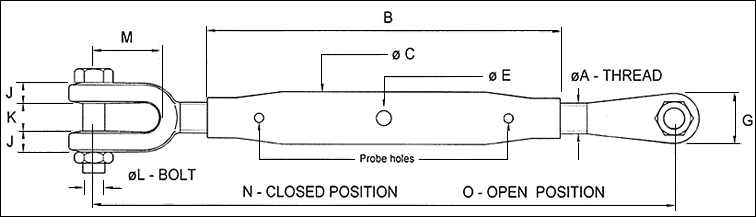

high load rigging screw pattern 302

ØA Thread
B
ØC
ØE
G
J
K
ØL
M
N
O
Suitable for WLL
Wt. -Kg's
M 12
229
27
9
24
9
19
10
35
334
527
1 t
1.2
M 16
229
27
11
32
10
22
12
51
378
559
1.5 t
1.6
M 20
229
34
11
36
11
23
16
48
380
549
2 t
2.5
M 22
305
42
13
40
13
26
20
60
464
703
3.25 t
4.0
M 27
356
51
13
52
15
32
22
70
540
815
4.75 t
6.2
M33
381
51
14
64
19
38
24
76
608
890
6.5 t
10.5
M39
407
60
16
64
22
48
33
90
668
958
9.5 t
14.5
*1.3/4"
407
76
17
80
24
50
36
110
690
962
12 t
23.0
*2"
407
76
19
92
26
54
42
127
748
1,002
17 t
30.0
M 56
410
95
22
108
30
67
48
135
780
1,010
20 t
40.0
M 64 410 101 25 120 32 70 56 135 790 995 25 t 47.0
M 72
410
120
25
140
42
88
64
150
874
1103
30 t
66

All measurements metric except where marked with symbol '*'
WLL = Working Load Limit (straight pull only)
Factor Of Safety 5 : 1 E.g. WLL 12 t Proof Loaded 24 t Break Load 60 t
Each Rigging Screw is individually Proof Tested, inspected & stamped.
A unique test Certificate is issued for every order.




Options available:

  • Finish ; Self colour, galvanised (T.C.A. Or Spun)
  • Grease nipples each end for enhanced lubrication
  • Locknuts fitted
  • Longer lengths; based on the above & meeting the same performance requirements.
