Pattern 189

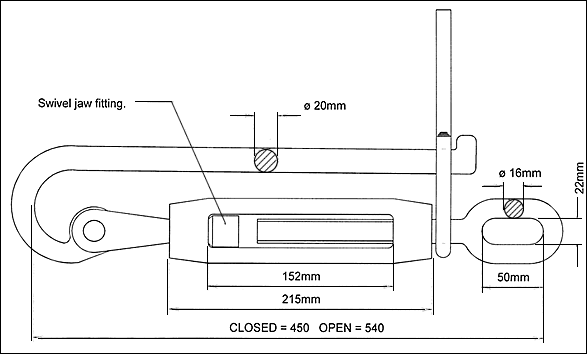

straining screw pattern 189

WLL = Working Load Limit (Straight pull Only)
WLL = 1,143 Kgs
Factor of Safety 5:1
E.g. WLL 1,143 Kgs Proof Loaded 2,286 Kgs Break Load 5,715 Kgs
Finish - BS EN ISO 1461 - Hot dip galvanised, incuding threads.

SS Product Code - 1520189
