Pattern 112

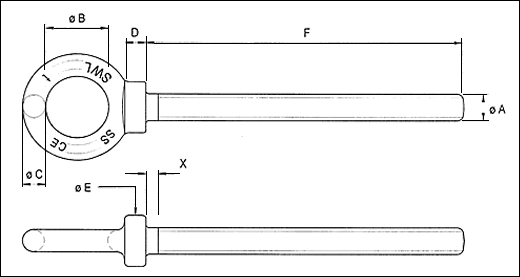

collared eyebolts pattern 112

ØA Thread
ØB
ØC
D
ØE
F
X
Suitable for WLL
Wt. Kg's
M 10
25
11
6
19
152
9
160 kg's
0.25
M 12
30
11
10
25
152
9
400 kg's
0.27
M 16
34
13
11
28
152
9
800 kg's
0.55
M 20
38
18
13
35
152
9
1.6 t
0.77
M 22
43
19
14
38
152
9
2.0 t
1
M 24
44
22
14
41
152
10
2.5 t
1.37
M 27
60
25
16
51
152
11
3.0 t
1.8
M 30
60
25
16
51
152
11
4.0 t
1.8
M 33
60
25
16
51
152
11
5.0 t
2
M 36
75
29
18
54
152
13
6.3 t
3.5
M 39
75
29
18
54
152
13
7.5 t
3.5

WLL = Working Load Limit (straight pull only)
Factor Of Safety 5 : 1  E.g. WLL 4 t     Proof Loaded 8 t  Break Load 20 t




Options

  • Each eyebolt can be Tested, Stamped & Certified.
  • Finish ; Self colour or galvanised (threads cut after or spun).
  • Shanks can be reduced in length to meet your requirements.
  • Material ; Stainless steel & exotics are available.
