Pattern 164

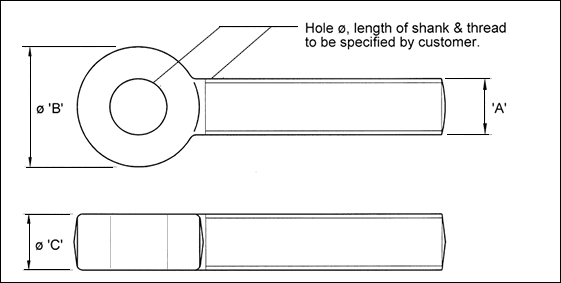

palm eyes pattern 164

ØA Thread
Ø across head 'B'
 'C'-Head Thickness
Centre of eye TO end of shank
Punched hole in forging
* Working load limit (based on suitable hole size)
Wt:kg's
M 10
25
 10
320
-
380 kg's
0.23
M 12
31
 13
305
-
500 kg's
0.28
M 16
38
 16
140
14
760 kg's
0.31
M 20
46
 20
305
14
1.2 t
0.9
M 24
52
 26
230
-
2.2 t
1.3
M 33
70
 32
267
25
3.8 t
2.4
M 39
88
 43
204
-
5.2 t
5.0
M 48
115 mm
 50
300
-
9.65 t
7.0
M 56
120 mm
 58
300
-
13.35 t
8.5
M 64
143 mm
 64
300
-
18.0 t
13.5

  • Hole diameter to meet your needs.
  • Proof load tested on request.
  • Thread length variable.
  • Chemical analysis available.
  • Left or right hands threads available.
  • Mechanical properties available if requested
    at time of enquiry.
  • Finish ; choose from self colour, plated or galvanised.
