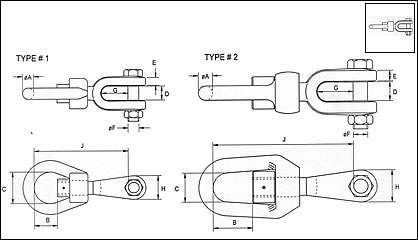

Bow & Jaw Swivel

Pattern 48

straining screw pattern 38

TYPE
Ø A
B
C
D
E
Ø F
G
H
J
WLL
Wt. - KG’s
# 1
17
50
50
32
15
22
59
52
190
3 t
3
# 1
26
52
75
48
22
33
73
64
225
6 t
7
# 1
30
60
100
50
24
36
92
80
260
10 t
11
# 2
34
96
76
54
26
42
106
92
345
14 t
21
# 2
39
116
82
70
32
56
107
120
420
20 t
33
# 2
49
137
100
88
42
64
118
140
460
25 t
51

WLL = Working Load Limit ( straight pull only )
Factor Of Safety 5 : 1   E.g. WLL 25t   Proof Loaded 50t   Break Load 125t




Options Available

  • Finish : Hot dip galvanised to BS EN 1461
  • Other sizes available on request.
