For Patterns -33,34 & 141

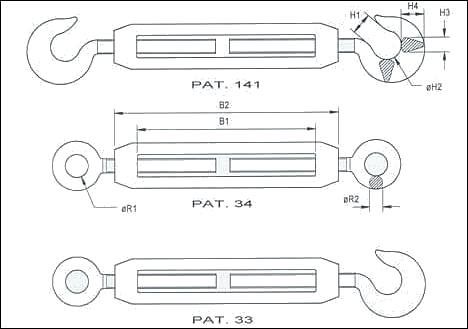

turnbuckle end fittings for patterns 33, 34 and 141

Ø THREAD
ISO 3643 medium fit - Left & Right 		B1 B2 Ø R1 Ø R2 H 1 Ø H2 H 3 H 4 Suitable for WLL
M 12 152 190 18 12 18.0 22.0 13 21 500 Kgs
M 16 152 202 24 14 25.0 27.0 16 25 760 Kgs
M 20 152 214 28 16 25.0 35.0 19 31 1.2 t
M 22 152 228 32 17 32.0 43.0 24 37 1.7 t
M 24 152 228 39 22 34.0 44.0 26 43 2.2 t
M 27 152 258 46 24 44.0 57.0 35 59 2.8 t
M 33 152 258 49 22 44.0 57.0 35 59 3.8 t

Options

  • Chemical analysis.
  • Other thread forms, providing quantity is sufficient.
  • Larger Take up's Available.
  • Material; carbon steel, alloy, stainless or exotics.
  • Finish; Self colour, Galvanised or Plated.
  • Mechanical properties, only if requested at enquiry.
  • Each turnbuckle can be tested & certified.
