Pattern 29Y

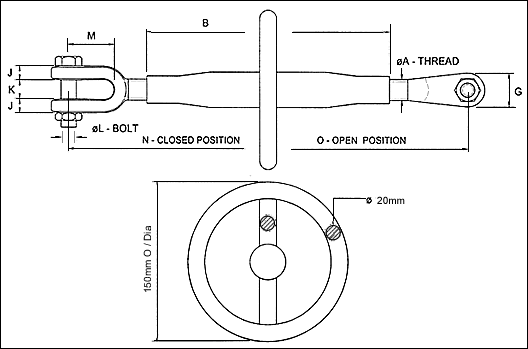

tubular rigging screw pattern 29y

ØA
B
G
J
K
ØL
M
N
O
Suitable for WLL
Wt. -Kg's
M 20
229
36
11
23
16
48
380
549
1.2 t
2.4
M 22
305
40
13
26
20
60
464
703
1.7 t
3.8
M 24
356
48
14
32
22
63
526
810
2.2 t
4.8

All measurements metric except where marked with symbol '*'
WLL = Working Load Limit (straight pull only)
Factor Of Safety 5 : 1 E.g. WLL 2.2 t Proof Loaded 4.4 t Break Load 11 t



Options available:

  • Each screw can be Tested, Stamped and Certified
  • Finish: self colour or hot dipped galvanised (T.C.A. Or Spun)
  • Grease nipples each end for enhanced lubrication
  • Inspection holes each end to show when fully extended
  • Longer lengths; offering more adjustment
