Pattern 29x

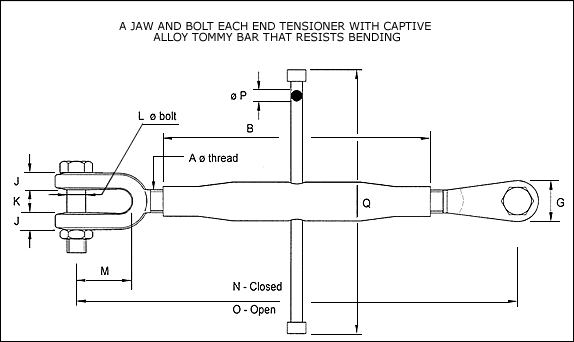

tubular rigging screw pattern 29x

ØA
B
G
J
K
L
M
N
O
Q
ØP
Wt kg
SS Ref
M33
381
64
19
38
24
76
604
872
400
16
11
163329X
M39
407
64
19
47
33
90
674
949
400
16
15
163929X
*1.3/4
407
80
24
47
36
105
705
959
400
16
23
164529X
*2
407
92
25
51
42
121
743
977
400
16
30
165129X

All measurements metric except where marked with a *


Options available:

  • Finish: self colour, plated or hot dipped galvanised
  • Grease nipples each end for enhanced lubrication
  • A variety of fittings to meet your requirements
  • Higher loads, using stronger materials, so reducing weight
  • Inspection holes each end to show when fully extended
  • Longer sizes available upon request
