Pattern 98S - BS 3032

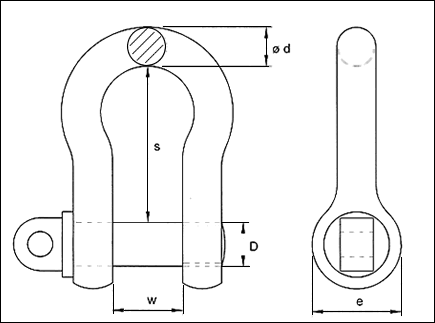

small bow shackles pattern 98s - BS3032

SWL TONS
d inches
D inches
w inches
s inches
e inches
Wt
kg's
0.5
3/8
1/2
5/8
1.1/2
1
0.2
1.0
1/2
5/8
7/8
2
1.1/4
0.35
1.5
5/8
3/4
1.1/8
2.1/2
1.1/2
0.6
2.0
3/4
7/8
1.3/8
3
1.3/4
1
3.0
7/8
1
1.1/2
3.1/2
2
1.60
4.0
1
1.1/8
1.3/4
4
2.1/4
2.3
SWL TONS
d inches
D inches
w inches
s inches
e inches
Wt kg's
5.0
1.1/8
1.1/4
2
4.1/2
2.1/2
3.2
6.25
1.1/4
1.3/8
2.1/4
5
2.3/4
4.5
7.5
1.3/8
1.1/2
2.3/8
5.1/2
3
5.8
9.25
1.1/2
1.3/4
2.5/8
6
3.1/2
8.5
10.5
1.5/8
1.7/8
2.7/8
6.1/2
3.3/4
11.3
12.5
1.3/4
2
3.1/8
7
4
13.5

SWL = Safe Working Load (straight pull only)
Factor Of Safety 5 : 1  E.g. SWL 3 Tons      Proof Loaded 6 Tons   Break Load 18 Tons.




     Options

  • Finish ; Self colour or galvanised.
