Pattern 98L - BS 3032

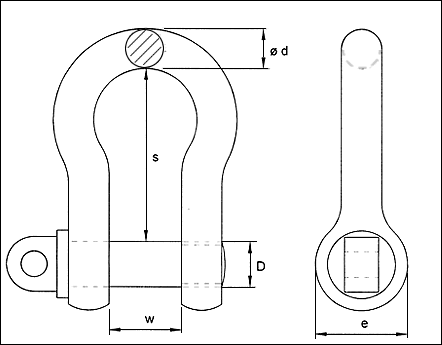

large bow shackles pattern 98L - BS3032

SWL TONS
d inches
D inches
w inches
s inches
e inches
Wt kg's
0.45
3/8
1/2
5/8
1.5/8
1
0.18
0.75
1/2
5/8
7/8
2.1/8
1.1/4
0.34
1.25
5/8
3/4
1.1/8
2.3/4
1.1/2
0.65
2.0
3/4
7/8
1.3/8
3.3/8
1.3/4
1.08
2.75
7/8
1
1.5/8
3.7/8
2
1.80
3.75
1
1.1/8
1.3/4
4.1/4
2.1/4
2.5
4.75
1.1/8
1.1/4
2
4.7/8
2.1/2
3.4
5.75
1.1/4
1.3/8
2.1/4
5.3/8
2.3/4
4.6
SWL TONS
d inches
D inches
w inches
s inches
e inches
Wt kg's
7.25
1.3/8
1.1/2
2.1/2
6
3
6.1
8.5
1.1/2
1.3/4
2.3/4
6.5/8
3.1/2
8.4
9.5
1.5/8
1.7/8
3
7.3/8
3.3/4
11.8
11.5
1.3/4
2
3.3/8
8.1/8
4
14.3
13.0
1.7/8
2.1/8
3.5/8
8.3/4
4.1/4
17.10
15.0
2
2.1/4
3.7/8
9.3/8
4.1/2
20.0
18.5
2.1/4
2.1/2
4.1/8
10.1/8
5
30.0

SWL = Safe Working Load (straight pull only)
Factor Of Safety 5 : 1  E.g. SWL 2 Tons      Proof Loaded 4 Tons   Break Load 10 Tons




     Options

  • Finish ; Self colour or galvanised
