Pattern 97S - BS 3032

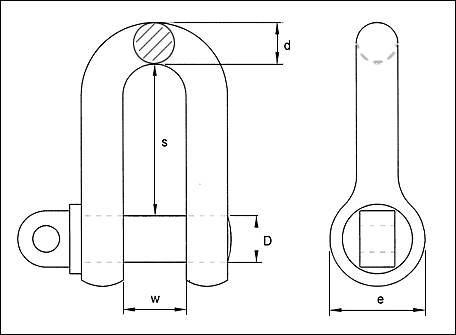

small d shackles pattern 97S - BS 3032

SWL TONS
d inches
D inches
w inches
s inches
e inches
Wt
Kg 's
0.3
1/4
3/8
3/8
7/8
3/4
0.06
0.6
3/8
1/2
5/8
1.3/8
1
0.16
1.0
1/2
5/8
7/8
1.7/8
1.1/4
0.33
1.75
5/8
3/4
1
2.1/4
1.1/2
0.61
2.5
3/4
7/8
1.1/4
2.3/4
1.3/4
0.93
3.5
7/8
1
1.3/8
3.1/4
2
1.8
4.5
1
1.1/8
1.1/2
3.5/8
2.1/4
2.15
5.5
1.1/8
1.1/4
1.3/4
4.1/8
2.1/2
3.02
SWL TONS
d inches
D inches
w inches
s inches
e inches
Wt Kg's
7.0
1.1/4
1.3/8
1.7/8
4.1/2
2.3/4
4.2
8.0
1.3/8
1.1/2
2.1/8
5
3.1/4
5.34
10.75
1.1/2
1.3/4
2.3/8
5.1/2
3.1/2
8.36
13.0
1.5/8
1.7/8
2.1/2
5.7/8
3.3/4
9.35
14.75
1.3/4
2
2.3/4
6.3/8
4
12.39
16.75
1.7/8
2.1/8
2.7/8
6.3/4
4.1/4
15.3
19.0
2
2.1/4
3
7.1/4
4.1/2
18.4
20.0
2.1/8
2.3/8
3.1/4
7.3/4
4.3/4
23.6

SWL = Safe Working Load (straight pull only)
Factor Of Safety 5 : 1  E.g. SWL 2.5 Tons      Proof Loaded 5.0 Tons   Break Load 12.5 Tons




     Options

  • Finish ; Self colour or galvanised.
