Pattern 122 - To BS 4278: 1984 Table 3

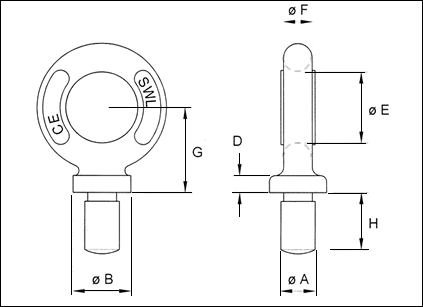

collared eyebolts pattern 122 - To BS 4278:1984 Table 3

ØA Thread
ØB
D
ØE
0 F
G
H
WLL- tonnes
Wt kg's
M 12
17
5
22
9
27
18
0.32
0.08
M 16
23
6
29
11
34
23
0.63
0.14
M 20
32
9
40
15
47
32
1.25
0.4
M 24
40
12
51
19
60
40
2.0
0.8
M 30
51
14
64
24
76
51
3.2
1.8
M 36
63
18
79
30
95
63
5.0
2.5
M 42
70
20
88
33
105
70
6.3
4.1
M 48
79
22
99
37
118
79
8.0
7.7
M 52
89
26
112
42
134
89
10.0
10

WLL = Working Load Limit (straight pull only)
Factor Of Safety 5 : 1  E.g. WLL 2 t     Proof Loaded 4 t  Break Load 10 t

IMPORTANT - These eyebolts are to be used for axial lift only.
If fitted in pairs or groups a spreader beam or frame should always be used.




Options

  • Finish ; Self colour, Galvanised or Plated.
