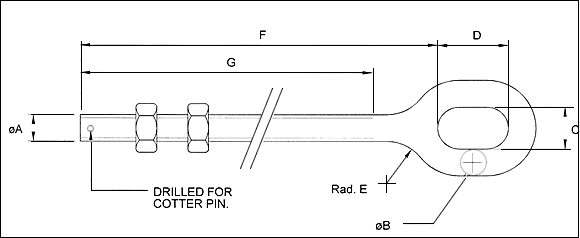

Eyebolt |
|
Pattern 128
| ØA |
WIRE
ROPE CIRC. |
SWL
KG'S |
PROOF
LOAD |
ØB |
C |
D |
E |
F |
G |
| M10 |
25 |
203 |
406 |
10 |
16 |
22 |
16 |
152 305 |
115 229 |
| M12 |
32 |
406 |
812 |
13 |
19 |
28 |
19 |
305 457 610 |
229 343 457 |
| M16 |
38
- 44 |
660 |
1312 |
16 |
25 |
41 |
25 |
457 610 762 |
343 457 572 |
| M20 |
51 |
1016 |
2032 |
19 |
32 |
44 |
32 |
457 610 762 |
343 457 572 |
| M22 |
57
- 64 |
1422 |
2844 |
22 |
38 |
57 |
38 |
457 610 762 |
343 457 572 |
| M24 |
70 |
1880 |
3759 |
25 |
41 |
64 |
41 |
457 610 762 |
343 457 572 |
| M27 |
76 |
2388 |
4775 |
28 |
44 |
70 |
44 |
457 610 762 |
434 357 572 |
|
|
|
