Pattern 160

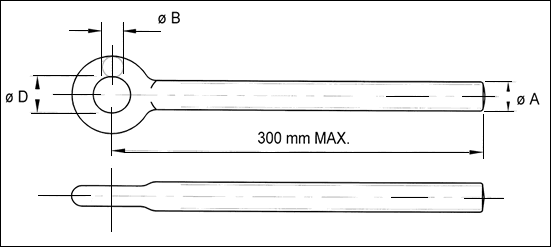

sling rods to BS 3974 Part 1 with integral forged eye pattern 160

ØA
B MIN mm
ØD mm
SWL kg f Vertical pull only
Weight kg
M 10
7
16
360
0.25
M 12
9
18
530
0.4
M 16
12
22
1,010
0.6
M 20
14
26
1,580
0.9
M 24
17
30
2,280
1.5
M 30
21
36
3,650
2.3
M 36
26
42
5,340
3.3
M 42
30
48
7,400
4.2
