Pattern 9

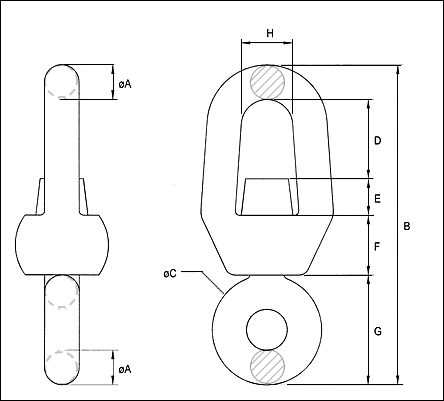

long bow swivels pattern 9

ØA
B
ØC
D
E
F
G
H
Wt. Kgs
Suitable for a WLL
12
133
16
39
17
27
39
19
0.5
1.5 t
16
162
19
47
17
27
49
25
1
2 t
20
204
24
60
25
34
60
28
1.6
3.15 t
24#
273
32
80
32
44
82
39
5.2
6 t
27#
299
32
102
35
44
85
49
5.3
8 t

# - Product made to order in minimum batches of 50 off

WLL = Working Load Limit (straight pull only)
Factor Of Safety 5 : 1  E.g. WLL 2t     Proof Loaded 4t  Break Load 10t




Options Available:

  • Each swivel can be Tested, Stamped & Certified.
  • Finish : Self colour or Hot dip galvanised to BS 729.
