Pattern 11

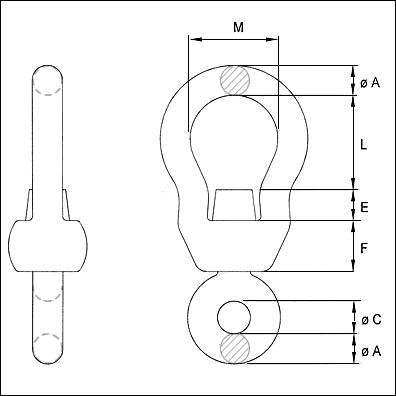

mooring swivel pattern 11

ØA
ØC
E
F
L
M
Wt. Kgs
Suitable for a WLL
12
16
17
27
38
35
0.5
1 t
16
19
17
27
44
41
1
1.6 t
20
24
25
34
55
53
1.6
2.3 t
24#
32
32
44
73
73
5.2
5 t
27#
32
35
44
92
85
5.3
6.5 t

# - Product made to order in minimum batches of 50 off

WLL = Working Load Limit (straight pull only)
Factor Of Safety 5 : 1  E.g. WLL 1t     Proof Loaded 2t  Break Load 5t




Options Available:

  • Each swivel can be Tested, Stamped & Certified.
  • Finish : Self colour or Hot dip galvanised to BS EN 1461.
