Pattern 148

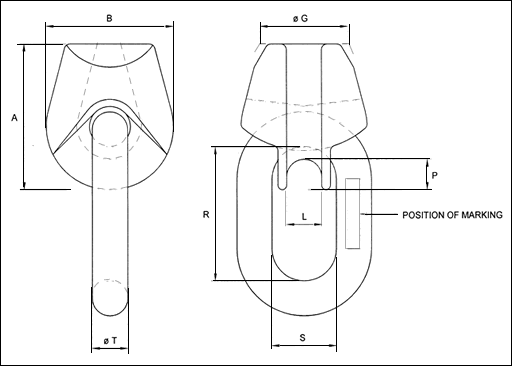

bordeaux connections pattern 148

ROPE Ø
SWL
BS SPEC.
A
B
ØG
L
P
R
S
T
WT. Kg's
SS code
1/2"
1 TON 8 CWT
461
67
52
36
14
11
64
28
14
0.5
0212148W
5/8"
2 TON 4 CWT
461
82
64
44
18
14
76
34
18
1
0216148W
22mm
6.22 t
7167
108
86
62
24
21
98
42
24
3
0222148
26mm
8.68 t
7167
117
98
70
29
24
108
51
27
4
0226148
28mm
10.1 t
7167
130
111
79
32
27
117
54
30
6
0228148
32mm
13.1 t
7167
140
122
86
35
30
133
59
33
8
0232148

SWL = Safe Working Load
Factor Of Safety 5 : 1  E.g. SWL 10.1t     Proof Loaded 20.2t  Break Load 50.5t




Options Available:

  • Bordeaux Connections for 19mm & 35mm ø rope made to order.
