Pattern 146

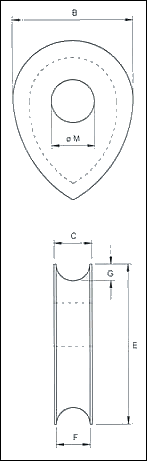

solid thimbles pattern 146
APPROX.
ROPE Ø

Rope.
Circ.
B
C
E
F
(Min.)
G
Ø
M. (Max.)

WT.
KG's
SS Code
8
25
35
11
48
7.9
5
12.7
0.09
0108146
9
28
44
14
57
11.1
6
15.9
0.17
0109146
11
34
52
18
70
12.7
7
19.0
0.30
0111146
13
41
60
21
83
14.3
8
22.2
0.42
0113146
14
44
60
21
83
14.3
8
22.2
0.48
0114146
16
50
70
22
95
15.9
10
25.4
0.54
0116146
17
54
79
25
105
19.0
11
28.6
0.85
0117146
19
60
86
29
118
22.2
11
31.8
1.19
0119146
21
66
86
29
118
22.2
11
31.8
1.19
0121146
22
69
95
32
127
23.8
13
34.9
1.80
0122146
24
75
105
33
140
25.4
14
38.1
2.57
0124146
25
78
115
36
152
27.0
16
41.3
2.80
0125146
29
91
124
40
165
30.2
18
44.4
3.06
0129146
32
100
140
44
191
33.3
19
50.8
4.52
0132146
35
109
156
51
210
38.1
21
57.2
6.51
0135146
38
119
172
57
235
41.3
22
63.5
9.20
0138146
41
129
172
60
235
44.4
22
63.5
11.50
0141146
44
138
190
64
260
47.6
25
69.8
13.50
0144146




Options

  • Finish; Self colour, galvanised or plated
