Pattern 138

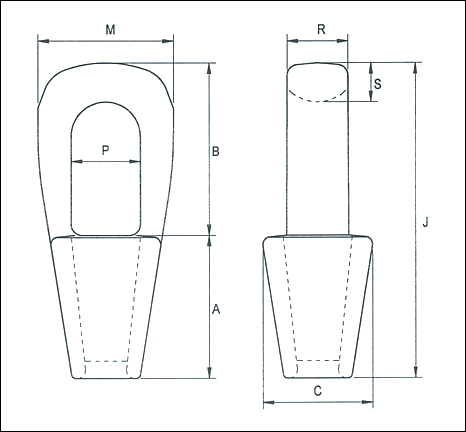

drop forged closed sockets pattern 138

ROPE DIA. mm - inches
ROPE CIRC. mm - inches
A
B
C
J
M
P
R
S
Safe working load
UNIT WEIGHT - Kg's
6 - 1/4"
22 - 7/8"
43
51
30
94
38
19
10
11
1/2 TON
0.289
8 - 5/16"
25 - 1"
43
51
30
94
38
19
10
11
3/4 TON
0.289
10 - 3/8"
32 - 1.1/4"
51
64
38
114
44
21
16
14
1 TON
0.374
11 - 7/16"
35 - 1.3/8"
51
64
38
114
44
21
16
14
1.1/4 TON
0.374
13 - 1/2"
41 - 1.5/8"
60
76
44
137
54
24
17
17
2 TON
0.82
14 - 9/16"
44 - 1.3/4"
60
76
44
137
54
24
17
17
2.1/4 TON
0.82
16 - 5/8"
51 - 2"
70
89
51
159
64
32
21
19
3 TON
1.25
19 - 3/4"
60 - 2.3/8"
76
102
62
178
75
38
25
24
4.1/4 TON
2.04
22 - 7/8"
70 - 2.3/4"
86
114
70
200
84
44
29
25
5.1/2 TON
2.95
25 - 1"
79 - 3.1/8"
105
130
83
235
100
51
35
29
7.1/2 TON
4.77
29 - 1.1/8"
89 - 3.1/2"
114
143
92
257
114
57
38
32
9.1/2 TON
6.8
32 - 1.1/4"
102 - 4"
133
152
108
286
124
64
41
38
11.1/2 TON
9.98
35 - 1.3/8"
114 - 4.1/2"
152
184
127
337
146
76
48
44
14 TON
11.79
38 - 1.1/2"
121 - 4.3/4"
152
184
127
337
146
76
48
44
16.1/2 TON
11.69
41 - 1.5/8"
127 - 5"
152
184
127
337
146
76
48
44
19 TON
11.59

Options
Material - AS BS 463:1958 or High Load EN16 Alloy,
Stainless & others.
Galvanised to BS EN ISO 1461
