Pattern 129

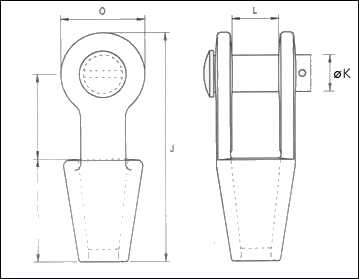

drop forged open sockets dimensionally to BS 463:1958 pattern 129

ROPE DIA. mm - inches
ROPE CIRC. mm - inches
A
B
J
L
O
ØK
SAFE WORKING LOAD
UNIT
WEIGHT - Kg's
6 - 1/4"
22 - 7/8"
43
32
89
16
29
13
1/2 TON
0.45
8 -5/16"
25 - 1"
43
32
89
16
29
13
3/4 TON
0.45
10 - 3/8"
32 - 1.1/4"
51
43
113
22
38
16
1 TON
0.55
11 - 7/16"
35 - 1.3/8"
51
43
113
22
38
16
1.1/4 TON
0.55
13 - 1/2"
41 - 1.5/8"
60
52
135
29
44
21
2 TON
0.812
14 - 9/16"
44 - 1.3/4"
60
52
135
29
44
21
2.1/4 TON
0.81
16 - 5/8"
51 - 2"
70
64
159
32
51
24
3 TON
1.27
19 - 3/4"
60 - 2.3/8"
76
67
175
38
64
29
4.1/4 TON
1.9
22 - 7/8"
70 - 2.3/4"
86
76
197
43
70
32
5.1/2 TON
2.7
25 - 1"
79 - 3.1/8"
105
89
237
48
86
38
7.1/2 TON
4.99
29 - 1.1/8"
89 - 3.1/2"
114
102
262
51
92
41
9.1/2 TON
6.8
32 - 1.1/4"
102 - 4"
133
111
297
54
105
48
11.1/2 TON
11.11
35 - 1.3/8"
114 - 4.1/2"
152
114
330
65
127
57
14 TON
16.33
38 - 1.1/2"
121 - 4.3/4"
152
114
330
65
127
57
16.1/2 TON
16.33
41 - 1.5/8"
127 - 5"
152
114
330
65
127
57
19 TON
16.33
51 - 2"
152 - 6"
195
165
448
79
175
70
25 TON
45.45
57 - 2.1/4"
178 - 7"
229
191
515
95
191
89
38 TON
72.72

Options
Material - AS BS 463: 1958 or High Load EN16 Alloy, Stainless & others.
Galvanised to BS EN ISO 1461
